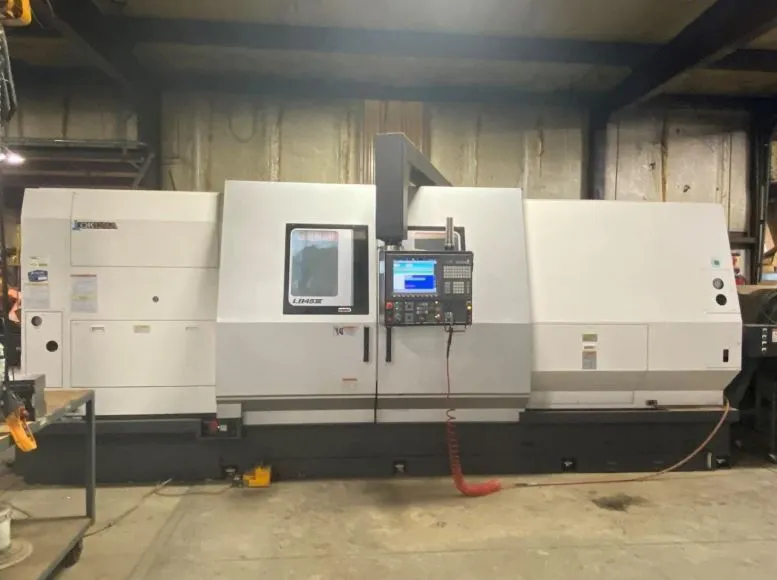

Used 2018 OKUMA LB45III-C X 2000 | CNC LATHE

Capacity
Swing over bed / mm (in.) ø900 (35.43)
Swing over carriage / mm (in.) ø550 (21.65)
Distance between centers / mm (in.) 2,060 (81.10)
Max turning dia / mm (in.) ø660 (25.98)
Max turning length / mm (in.) 2,000 (78.74)

Travels
X axis travel / mm (in.) 440 {330+110} (17.32 {12.99 + 4.33})
Z axis travel / mm (in.) 2,060 (81.10)

Spindle
Spindle speed / min-1 {rpm} 12 to 2,800
No. of spindle speed ranges 4 auto ranges (4 gears) [4 auto ranges]
Spindle nose shape JIS A2-11
Thru-spindle hole dia / mm (in.) ø130 (5.12)
Spindle bearing ID / mm (in.) ø180 (7.09)

Turret
Type 12-station BMT-style turret
No. of tools 12
Tool shank height / mm (in.) 32 (1-1/4)
Boring bar shank dia / mm (in.) ø63 (2-1/2)
Indexing time / sec. 0.7/1 index (lift-up)

Feedrates
Rapid traverse speed / mm/min (ipm) X: 15 (0.59) Z: 20 (0.79)

Tailstock
Tailstock quill dia / mm (in.) ø130 (5.12)
Tailstock quill taper hole MT 5 (built-in center)
Tailstock travel / mm (in.) 170 (6.69)

Motors
Spindle drive (30 min/cont) / kW (hp) 37/30 (50/40), 45/37 (60/50)*
Feed axis drive / kW (hp) X: 3.6 (4.8) Z: L4.6 (8)
Coolant pump / kW (hp) 0.4 (0.53)

Machine Size
Height / mm (in.) 2,617 (103.03)
Floor space
Width × Depth (tank included) / mm × mm (in.) 5,760 × 3,358 (226.77 × 132.20)
Weight / kg (lb) 14,500 (31,900)

CNC system
OSP-P300LA
