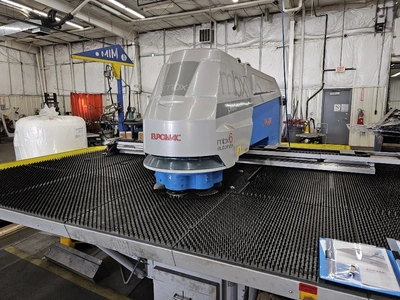

Used 2019 EUROMAC MBX 6 PLUS 1250/30-2250 | Turret Punches

Max. punching force (kN) 300
Y axis with Multitool/Monopunch (mm)
Y = 1250 1300 / 1250
X axis (mm) 2250
Automatic repositioning in X (mm) up to 10.000
Position accuracy (mm) +/- 0.1
Bidirectional Autoindex stations 3
Opening of clamps (mm) 11
Automatic positioning clamps 2
Max. hit rate (1/min - 1 mm stroke): Punching with 20 mm pitch 250
Nibbling with 1 mm pitch 600
Thickness range (mm) 0.6 - 6
Max. weight at reduced axis speed (kg) 150*
USB port 6
Installed power (kW) 8.5
Average consumption (kW/h) 4.5
Approx. weight (kg)
X = 2250 7000
Overall dimensions (mm)
X = 2500 3980 x 3630
