2018 DMG MORI SPRINT 32/8

Machine concept
Number of linear axes + C-axes 6 + 2
Number of spindles 2
Number of channels 2

Main spindle
Maximum bar capacity mm | in 32 | 1.26
Speed rpm 8,500
Power (S2 30 min/S1) kW | hp 7.5/5.5 | 10.1/7.4 S2 15 min/S1
Torque (S2 30 min/S1) Nm | ft lbs 51.9/40.4 | 38.3/29.8 S2 15 min/S1

Counter spindle
Maximum bar capacity mm | in 32 | 1.26
C-axis (0.001°)
Speed rpm 8,500
Power (S2 30 min/S1) kW | hp 3.7/2.2 | 5.0/3.0
Torque (S2 30 min/S1) Nm | ft lbs 23.6/14 | 17.4/10.3

Working area/ travels
Z1 travel (spindle travel) mm | in 100 | 3.94
Tool carrier 1: X1/Y1 travel mm | in 70/405 | 2.76/15.94
Counter spindle: X2/Z2 travel mm | in 300/200 | 11.81/7.87
Tool carrier 2: Y2 travel mm | in 135 | 5.31
Rapid traverse speed on linear axes
X1, Z1, X2, Z2/Y1, Y2 m / min | in/ min 40/30 | 131/98
Acceleration in linear axes m /s² | ft 5 | 0.02

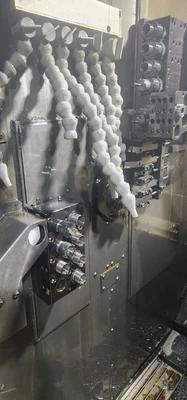

Tool holder on slide 1
Fixed turning tools 6
Tools for front machining/back-working 4/4
Driven tools 2 + 2
Maximum speed rpm 6,000
Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3
Maximum torque (S3 40 % /S1) Nm | ft lbs 3.5/3 | 2.6/2.2
Maximum speed rpm 4,000
Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3
Maximum torque (S3 40 % /S1) Nm | ft lbs 5.25/4.5 | 3.9/3.3

Tool holder on slide Y2 On station for back working
Fixed/driven tools for back-working 4/4 (5/4)*
Maximum speed rpm 6,000
Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3
Maximum torque (S3 40 % /S1) Nm | ft lbs 3.5/3 | 2.6/2.2

Tool holder on slide 2
Fixed/driven tools for back-working 2/0 (0/2)* (0/1 for polygons)*
Maximum speed rpm 4,250
Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3
Maximum torque (S3 40 % /S1) Nm | ft lbs 3.5/3 | 2.6/2.2

Machine
Footprint m² | ft² 2.8 | 30.1
Machine height mm | in 2.085 | 82.09
Machine weight (including coolant tank) kg | lbs 3,550 | 7,826

Control system
DMG MORI SLIMline Control with 10.4″ monitor FANUC 32i

Automatic turning with 6 linear axes and 2 C-axis
Main spindle with 8,500 rpm, 29.8 ft lb, 7.4 hp
Counter spindle with 8,500 rpm, 10.3 ft lb, 3 hp
8 driven tool stations as standard
Driven tools spindles 6,000 rpm, 2.2 ft lb, 1.3 hp
Control panel with 10.4" color display and FANUC 32i-B Plus
2 control channels, 6 linear axes and 2 C-axes
Tool Monitoring System with graphical tool load display as option
Up to 2 tools working simultaneously
