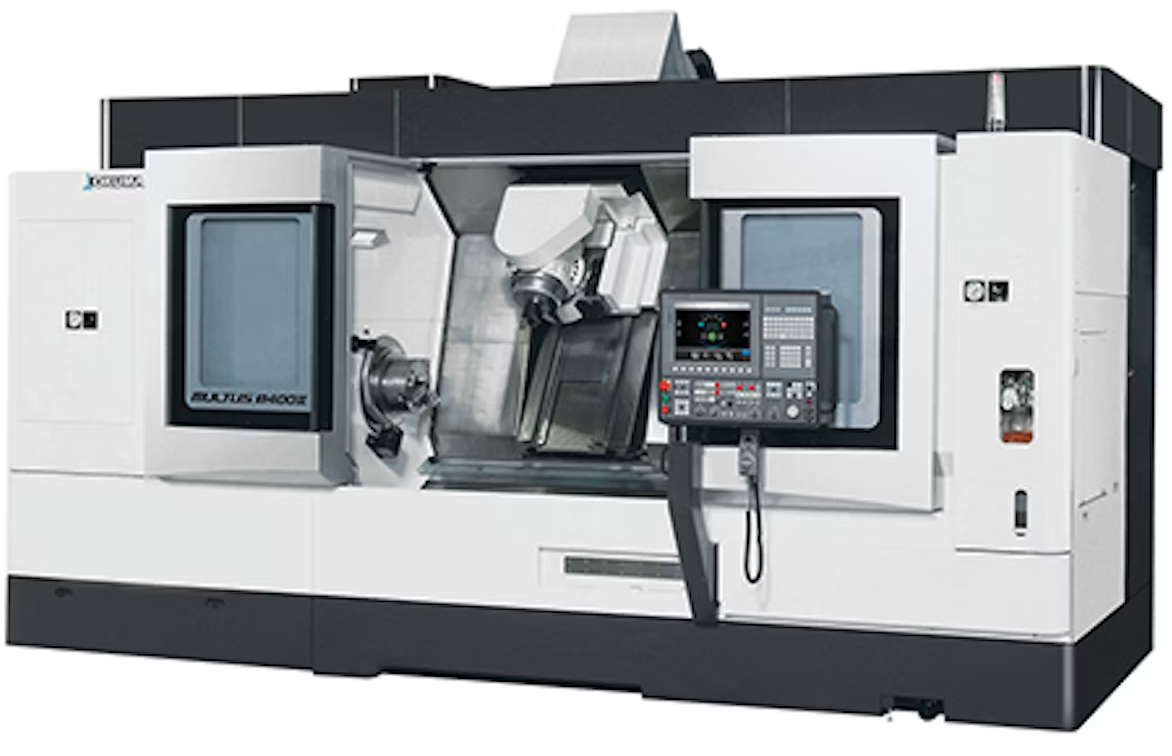

2022 OKUMA MULTUS B400II-1500BBW
Have one to sell?
ConditionUsed
1 available
The OKUMA MULTUS B400-1500BBW is a versatile and robust multitasking machine that combines the capabilities of a CNC lathe and a machining center. Its dual spindles and powerful milling spindle allow for simultaneous machining on multiple sides of a workpiece. With a large work envelope, high-speed rotation, and advanced control system, it delivers precise and efficient machining for complex parts. The MULTUS B400-1500BBW is an ideal solution for various industries and applications, providing exceptional performance and reliability.
Swing over saddle ø710 (27.95) (Y=0)
Max machining dia ø710 (27.95)
Distance between centers 1,500 (59.06)
X axis 690 (+670 to −20) (27.17 (+26.38 to –0.79))
Z axis 1,545 (60.83)
Y axis 230 (+115 to −115) (9.06 (+4.53 to –4.53)) *2
W axis 230 1,550 (61.02)
C-axis control 360 (min control angle 0.001)
B axis indexing angle 360 (min control angle 0.001)
Spindle speed 30 to 2,800
Speed ranges 2 auto ranges (2-speed motor coil switching)
Spindle nose JIS A2-11
Tapered bore / Bearing dia ø150 ø5.91
Spindle speed 30 to 3,800 min
Speed ranges 2 auto ranges (motor coil switching
Spindle nose JIS A2-8
Tapered bore / Bearing dia ø120/ø4.72
Type H1 ATC
No. of tools stations 1 for both L and M tools
Tool shank / Pull stud CAPTO C6
Milling tool spindle Speed range 50 to 6,000
Height 3,000 (118.11)*5
Floor space (with tank) 5,750×2,693 (226.38 ✕ 106.02)
Weight (with CNC) 15,500 (34,100)
Big Bore Spindle (A2-11) W/F2511 Cylinder & Drawtube and B215 Chuck Left
Auto Gauging Renishaw RMP600 RMI-Q Capto C6
Touchsetter Auto
Conveyor, Right Discharge, Drum Filter, High, 1500
Hydraulic Oil Temp Regulator
Y-Axis Gauging w/ Slope Gauging
OCJ State Tool Package
Spare M-Codes 4 Sets
C-Axis Auto Zero Offset Function
*Specifications Subject to Buyer Verification
