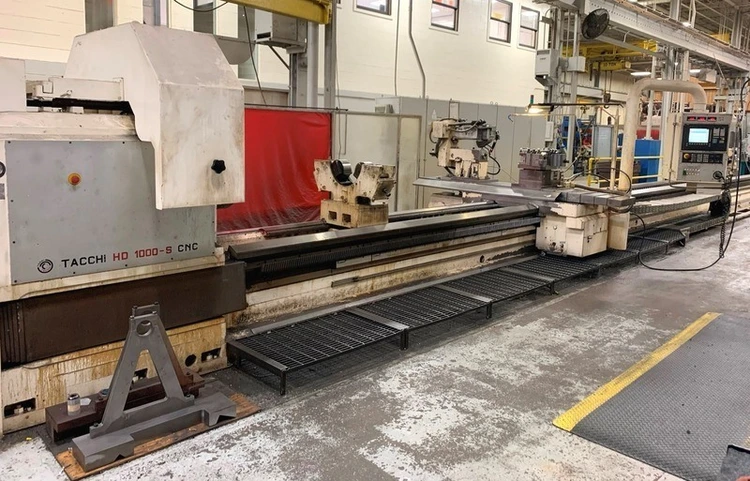

Tacchi HD-1000
Have one to sell?
ConditionUsed
1 available
Distance Between Centers 516”
Swing Over Bed 48”
Swing Over Cross Slide 33”
Spindle Speed 3 - 1,000 RPM
Milling/Drilling Spindle Speeds 20-2000 RPM
Swing Over Bedways 48”
Swing Over Cross Slide 33”
Distance Between Centers 516”
Spindle Bore Diameter 4.7”
Main Spindle Drive Motor 75 HP/DC Drive
Spindle Speed 3 - 1,000 RPM
Geared Headstock (w/ Spindle Positioning for Milling) 2.5 degree increment
Cross Slide Stroke 23.6"
Rapid Traverse, longitudinal & cross 236.2 ipm
Feeds, longitudinal & cross 236.2 ipm
Milling Unit on Cross Slide (Saddle) Two Position (Radial & Axial) 0 degrees & 90 degrees
Milling/Drilling Unit Spindle Nose: ISO 40 15 HP/DC
Milling/Drilling Unit Spindle Speeds (Inf. Variable) 20-2000 RPM
Tailstock Quill Diameter 6.9”
Tailstock Quill Stroke 11.8”
Tailstock Internal Taper #6 MT
Maximum Weight Between Centers 24,200 Lbs.
Electrics 460V/3PH/60Hz
Dimensions - Approximate 57'-0" x 62" x 79" (H)
Weight - Approximate 56,000 Lbs
*Specifications Subject to Buyer Verification
EQUIPPED WITH:
Siemens 840DI CNC Control (Retrofit in 2005)
Heidenhain Scales (Closed Loop Feedback)
Milling/Drilling Capabilities and Spindle Positioning
1000 Psi Hi-Pressure Pump for Deep Hole Drilling
(2) Steady Rests/Whip Guides for Deep Hole Drilling
4 Position Electric Turret on Saddle/Cross Slide (Spare Turret in crate)
25" 3-Jaw Buck Chuck (Spindle Nose DIN55021 - GR11")
(1) 16" Capacity Open Steady Rest

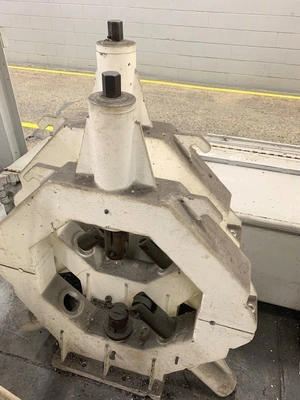

(2) 4"-19.7" Capacity Closed Steady Rests
Hydraulic Tailstock Clamping

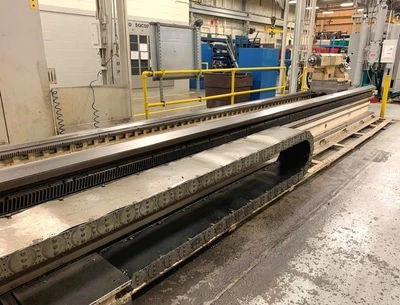

Full Length Chip Conveyor
Coolant/Filtration System
Automatic Lubrication
Misc. Spare Parts and Tooling
Books, Manuals, Drawings & Retrofit Documentation
*Specifications Subject to Buyer Verification
