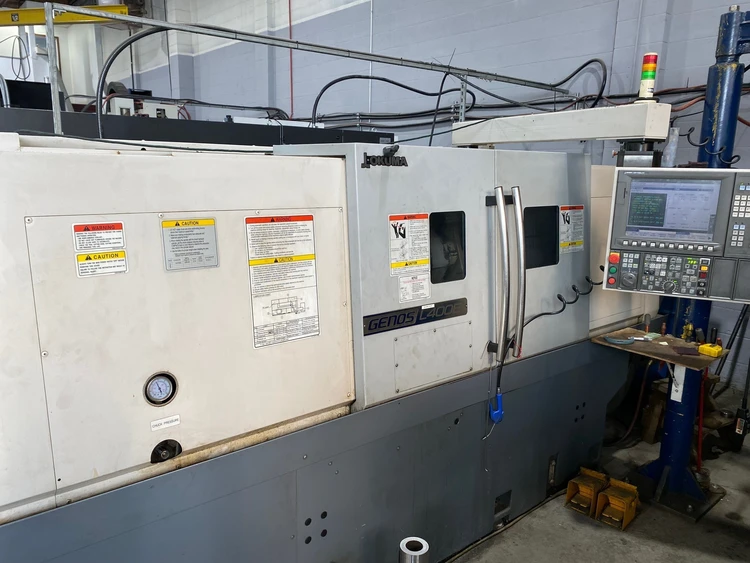

2012 Okuma Genos L400E
Have one to sell?
ConditionUsed
1 available
Max. Turning Dia. 12.29"
Max. Turning Length 43.31"
Spindle Speed 3,000 RPM
Chuck 12"
Tailstock
Swing over bed: 20.47" (520 mm)
Swing over saddle: 18.5" (470 mm)
Maximum turning diameter: 12.29" (330 mm)
Maximum turning length: 43.31" (1100 mm)
Spindle nose: A2-8
Spindle bore diameter: 3.15" (80 mm)
Spindle speed range: 45 – 3,000 RPM
Spindle motor: 20 HP
X-Axis travel: 9.05" (230 mm)
Z-Axis travel: 45.04" (1144 mm)
Rapid traverse X/Z: 20 m/min (787 IPM)
Turret: 12 positions (VDI40)
Tailstock Taper: MT-4
Machine weight: 14,300 lbs (6,500 kg)
*Specifications Subject to Buyer Verification
Chip Conveyor
